Enjoy FINAL FANTASY XIV in 5.1ch Surround Sound!

FINAL FANTASY XIV is a MMORPG that players can enjoy in 5.1ch surround sound. Please take this opportunity to experience the 5.1ch surround sound for yourself!

There are two major ways to output the 5.1ch through the PC:

• Connect through analog output
• Connect through digital output

1. Connect through analog output
   Properly connect the audio output terminal on the onboard or dedicated sound card.
   * Requires a sound device with an analog input (i.e. amplifier, speaker, etc.)


2. Connect through digital output
   The easiest way to enjoy the 5.1ch surround sound with the digital output is through the HDMI connection.
   * Requires a sound device with a HDMI input (i.e. amplifier, speaker, etc.)

For details on how to connect through the analog and digital outputs, please see below.
Windows XP
Windows Vista / Windows 7

The audio output in FINAL FANTASY XIV utilizes the linear pulse code modulation (L-PCM) method and it does not use a specific compression format. Therefore, any optical or coaxial digital audio terminals on the onboard or dedicated sound cards will only output monaural or stereophonic sounds.

If the PC is mounted with a real time encoder such as the Dolby Digital Live or DTS Connect, you will be able to experience the 5.1ch surround sound by connecting optical or coaxial digital terminals with Dolby Digital or DTS compatible sound devices. Please refer to the homepage of the sound card or the PC maker for more information on how to set up the real time encoders.
* The information listed above may differ depending on the PC environment.

If the sound device you possess does not support 5.1ch surround sound, please make the proper adjustments to the speaker setup to automatically downmix the sound output.
If you are experiencing sound related issues such as "I can’t hear anything" or "The game volume is too low," please check your current speaker set up.
* If you are a Windows XP user, please refer to step 5 under "How to Set Up the 5.1ch Audio Output (Windows XP)" for instructions on how to make changes to the speaker setup.
* If you are a Windows Vista / 7 user, please refer to step 6 under "How to Set Up the 5.1ch Audio Output (Windows 7 / Vista)" for instructions on how to make changes to the speaker setup.

Listed below is how a user can set up the 5.1ch audio output with Windows Vista / Windows 7.

1. Connect the audio device.
   Connect the speaker, amplifier, or HDMI device with the audio output on the PC.

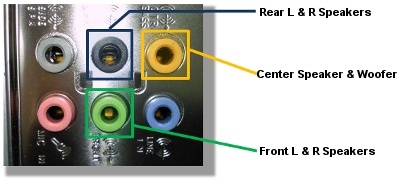

   - Analog Output
   Attachment 224

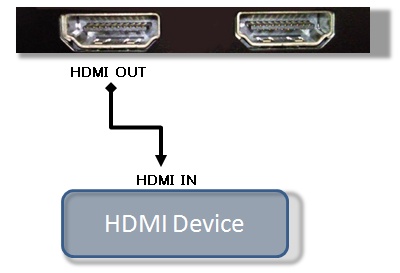

   - Digital (HDMI) Output
   Attachment 225



2. Open the "Control Panel" from the Start menu.
   Attachment 226

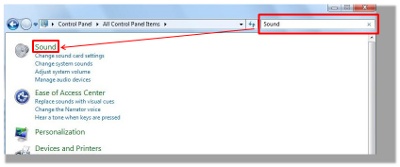

3. Enter the word "Sound" in the search box, and then click on "Sound."
   Attachment 227

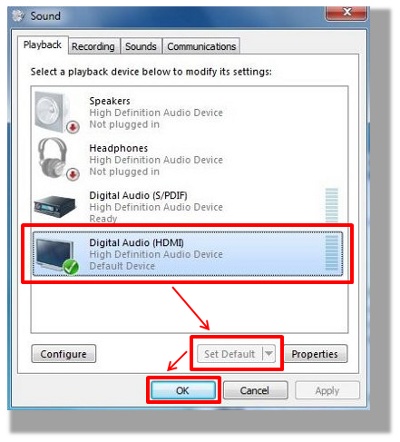

4. Select the appropriate device under the "Playback" tab, select "Set Default," and then select "OK."
   Attachment 228
   * Once the audio device is set up, a green check mark will appear on the bottom right of the icon. If a device is already set, the "Set Default" option will not be selectable.

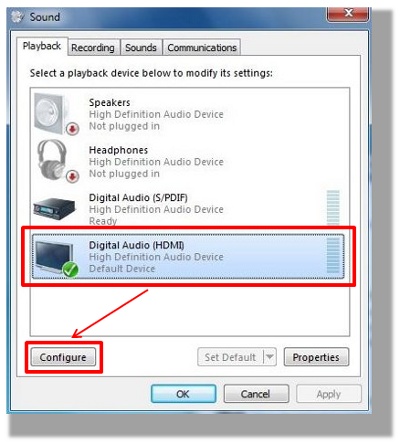

5. Select the appropriate device under the "Playback" tab, and then select "Configure."
   Attachment 229

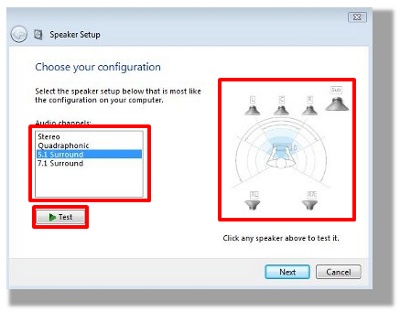

6. Select a speaker setup, and then select "Test" or the speaker icon on the right side to test the sound.
   Attachment 230

Follow the steps listed in the wizard to complete the setup.

Listed below is how a user can set up the 5.1ch audio output with Windows XP.

1. Connect the audio device.
   Connect the speaker, amplifier, or HDMI device with the audio output on the PC.

   - Analog Output
   Attachment 231

   - Digital (HDMI) Output
   Attachment 232

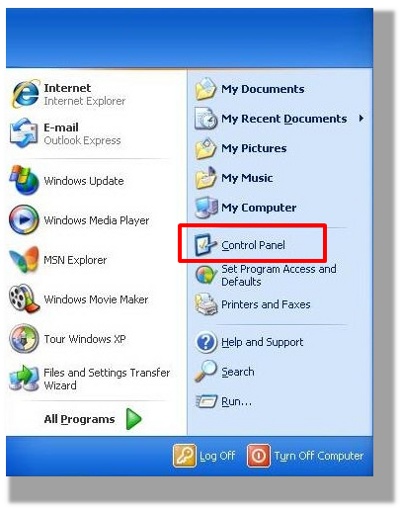

2. Open the "Control Panel" from the Start menu.
   Attachment 233

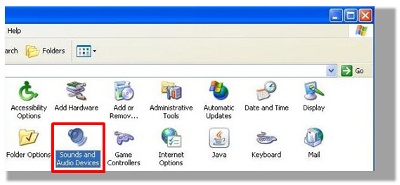

3. Open "Sounds and Audio Devices."
   Attachment 234

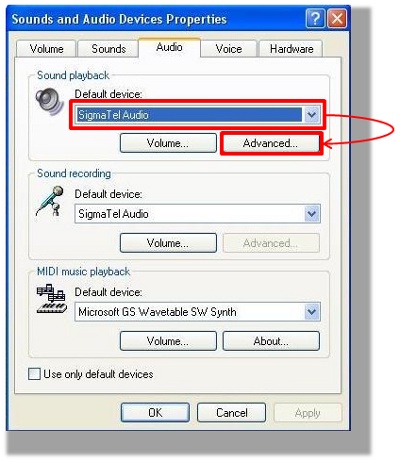

4. Go to the "Audio" tab, select a device under "Sound playback," and then select "Advanced."
   Attachment 235

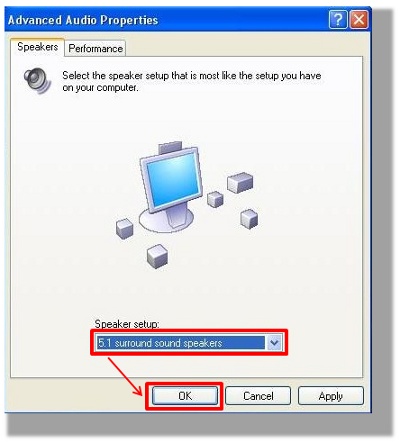

5. Select a speaker setup from under the "Speaker" tab, and then select "OK."
   Attachment 236

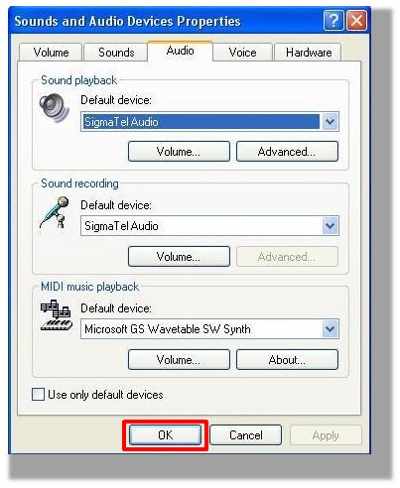

6. Select "OK" to complete the setup.
   Attachment 237
